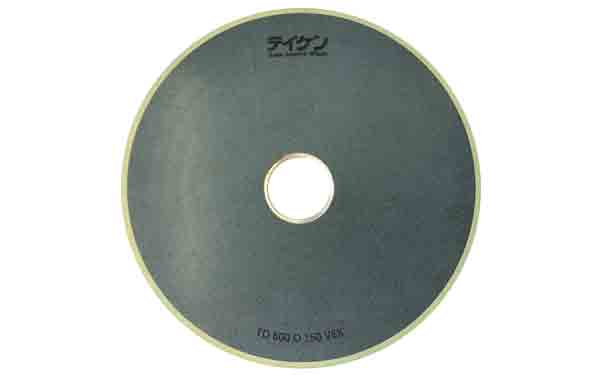

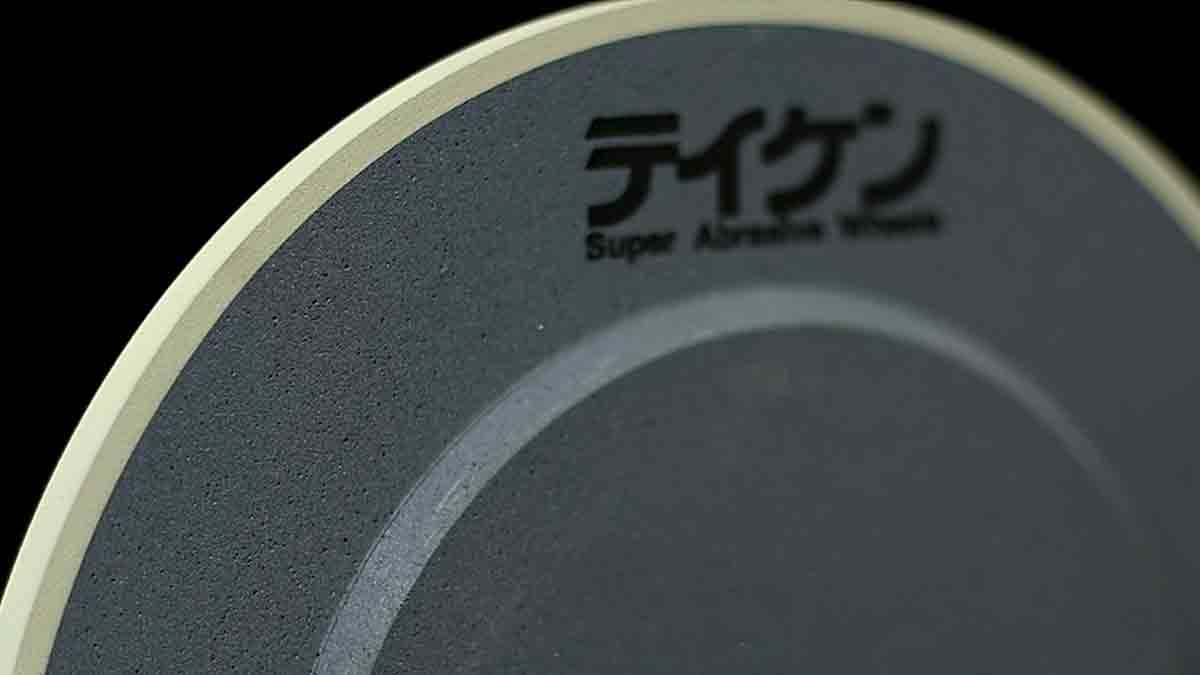

The TDX wheel is a new VIT Diamond wheel that uses new abrasive materials that are tough and long-lasting, and new bonds that are powerful and sharp. In addition, because it was changed to a manufacturing method that minimizes damage to the diamond due to heat, it is suitable for processing that makes use of the original sharpness of the diamond. As with conventional VIT wheels, features such as high rigidity, low thermal expansion, and pores due to integrated molding remain unchanged, so it can be replaced with conventional products.
●It can be produced up to 180 degrees of concentration.
●The sharpness lasts.
①The processing time is shortened.
②It is hard to cause corner sagging and chipping.
③The dressing interval is extended.
[wheel spec：1A1 180x10x31.75 5X TD400Q 150V6X] [Work PCD]
[Cut 1μm Grinding margin 30μm]
It is sharper than conventional products, and the grinding sound is quiet, so you can use it with relief. Also, in the past, the dressing was required four times a day, but TDX can be processed without dressing until the evening if it dresses in the morning. Because it wears less, it has become easier to get close to the target dimension.
[wheel spec：3A1 180x10x31.75 6U-3X TD1000M 180V6Ｘ]
[Cut 1μm or less Grinding margin 5μm]
It is used for surface after wire cutting, and if it is designed as a hard wheel, it will cause sagging and chipping in the work, but TDX is finished more beautifully than before, and there is no chipping and it is good.
[wheel spec：3A1 350x30x127 5U-3X TD400P 180V6X]
[Cut 10μm Grinding margin 50μm]
Conventional products used resin diamond wheels and frequently required dressing. TDX has increased the dressing interval by 10 times, the dressing time is shortened to less than 1/3, and the processing time has been greatly reduced.
